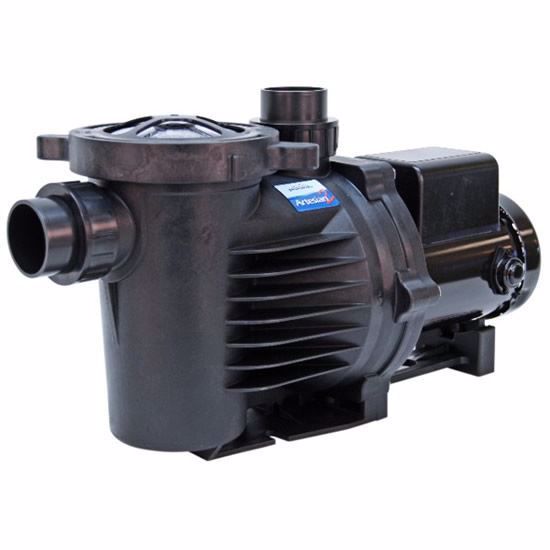

Perfromance Pro Artesian2
Performance Pro Artesian 2 is the perfect choice for high efficiency and reliability combined with the convenience of self-priming. Available in 1/8 to 1/2 hp at 1725 rpm and 1/2 to 3 hp at 3450 rpm.
Performance Pro Artesian 2 is the perfect choice for high efficiency and reliability combined with the convenience of self-priming. Molded of corrosion-resistant polypropylene. Artesian2 pumps are ideal for applications in which the pump is positioned above the water level. An easy-open Lexan lid provides ready access to the integral strainer pot’s large basket. Available in 1/8 to 1/2 hp at 1725 rpm and 1/2 to 3 hp at 3450 rpm. Nothing outlasts a Perfromance Pro pump
- Money saving high efficiency pump and motor units.
- 2 inch unions are included.
- Long life corrosion resistant Stainless Steel shaft seals.
- Impeller interchangeability allows you to easily change your pump’s performance.
- Top-of-the-line motors. All 1725 rpm units are totally enclosed for excellent protection and long term reliability. All 3450 rpm units are open drip proof for cooler motor operation and long term reliability.
- Pump and motors are designed for quiet operation.
- Safety first – out of water (external) pumps help protect you from annoying and potentially dangerous oil or electric leaks.
- 3 year limited warranty (for fresh water applications).
|
Low RPM Models
|
HP
|
Mtr Type
|
RPM
|
Volts
|
Max Watts
|
Watts @
Max Head
|
Watts @
Max Flow
|
|---|
|
A2-1/8-39
|
1/8
|
TEFC
|
1725
|
115/230
|
202
|
112 @ 17'
|
165 @ 3900 GPH @ 3'
|
|---|
|
A2-1/4-47
|
1/4
|
TEFC
|
1725
|
115/230
|
290
|
170 @ 22'
|
250 @ 4680 GPH @ 4'
|
|---|
|
A2-1/4-58
|
1/4
|
TEFC
|
1725
|
115/230
|
360
|
360 @ 23'
|
320 @ 5760 GPH @ 5'
|
|---|
|
A2-1/3-63
|
1/3
|
TEFC
|
1725
|
115/230
|
450
|
200 @ 26'
|
440 @ 6300 GPH @ 6'
|
|---|
|
A2-1/2-76
|
1/2
|
TEFC
|
1725
|
115/230
|
630
|
260 @ 26'
|
630 @ 7560 GPH @ 8'
|
|---|
|
High Flow
Models
|
HP
|
Mtr Type
|
RPM
|
Volts
|
Max Watts
/Amps
|
Amps @
Max Head
@ 230V
|
Watts @
Max Flow
@ 230V
|
|---|
|
A2-3/4-HF
|
3/4
|
ODP
|
3450
|
115/230
|
1270/5.6
|
2.7 @ 55'
|
4.8 @ 8,880 GPH @ 11'
|
|---|
|
A2-1-HF
|
1
|
ODP
|
3450
|
115/230
|
1640/7.3
|
3.5 @ 65'
|
6.4 @ 9,480 GPH @ 13'
|
|---|
|
A2-1 1/2-HF
|
1 1/2
|
ODP
|
3450
|
115/230
|
1940/9.0
|
5.9 @ 54'
|
8.4 @ 11,400 GPH @ 17'
|
|---|
|
A2-2-HF
|
2
|
ODP
|
3450
|
230
|
2300/10
|
5.5 @ 55'
|
9.8 @ 12,840 GPH @ 20'
|
|---|
|
A2-3-HF
|
3
|
ODP
|
3450
|
230
|
3100/13.6
|
7.7 @ 64'
|
13.6 @ 14,040 GPH @ 24'
|
|---|
|
High Head
Models
|
HP
|
Mtr Type
|
RPM
|
Volts
|
Max Watts
/Amps
|
Amps @
Max Head
@ 230V
|
Watts @
Max Flow
@ 230V
|
|---|
|
A2-1/2-HH
|
1/2
|
ODP
|
3450
|
115/230
|
940/4.2
|
2.4 @ 54'
|
3.3 @ 6,660 GPH @ 7'
|
|---|
|
A2-3/4-HH
|
3/4
|
ODP
|
3450
|
115/230
|
1250/5.6
|
3.2 @ 70'
|
4.2 @ 7,140 GPH @ 8'
|
|---|
|
A2-1 -HH
|
1
|
ODP
|
3450
|
115/230
|
1680/7.4
|
4.1 @ 78'
|
5.8 @ 8,580 GPH @ 10'
|
|---|
|
A2-1 1/2-HH
|
1 1/2
|
ODP
|
3450
|
115/230
|
1970/9.1
|
5.5 @ 83'
|
7.5 @ 9,600 GPH @ 13'
|
|---|
|
A2-2-HH
|
2
|
ODP
|
3450
|
230
|
2220/9.9
|
5.0 @ 86'
|
8.4 @ 11,040 GPH @ 16'
|
|---|
|
A2-3-HH
|
3
|
ODP
|
3450
|
230
|
2900/13.1
|
7.1 @ 93'
|
12.2 @ 12,000 GPH @ 18'
|
|---|
|
Model
|
Maximum Recommended Suction Lift
|
Approximate Time To Prime
|
|---|
|
A2-1/8-39
|
2 Ft.
|
15 Minutes
|
|---|
|
A2-1/4-47
|
3 Ft.
|
15 Minutes
|
|---|
|
A2-1/4-58
|
3 Ft.
|
15 Minutes
|
|---|
|
A2-1/3-63
|
4 Ft.
|
15 Minutes
|
|---|
|
A2-1/2-76
|
5 Ft.
|
15 Minutes
|
|---|
|
A2-1/2-HH
|
3Ft.
|
10 Minutes
|
|---|
|
A2-3/4-HF/HH
|
4 Ft.
|
10 Minutes
|
|---|
|
A2-1-HF/HH
|
5 Ft.
|
10 Minutes
|
|---|
|
A2-1 1/2-HF/HH
|
6 Ft.
|
10 Minutes
|
|---|
|
A2-2-HF/HH
|
7 Ft.
|
10 Minutes
|
|---|
|
A2-3-HF/HH
|
8 Ft.
|
10 Minutes
|
|---|
|

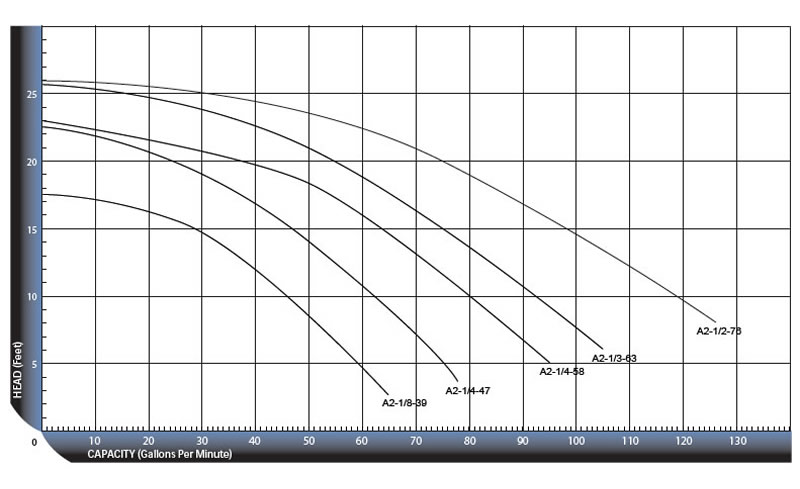

Low RPM
|

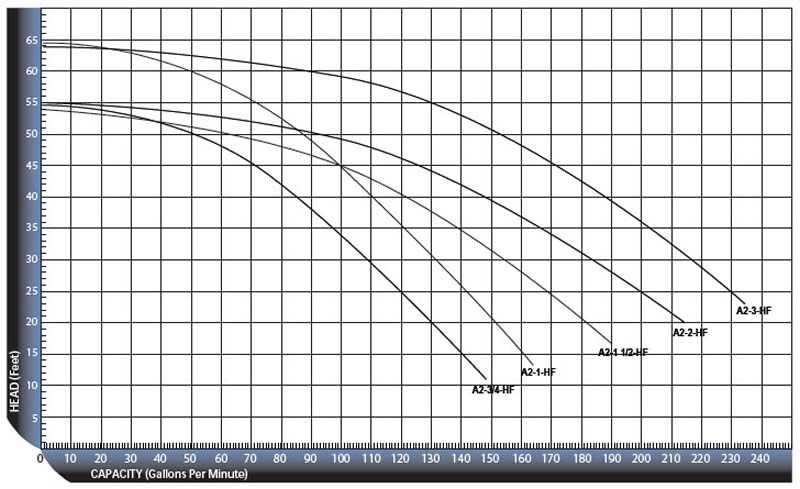

Hi Flow
|

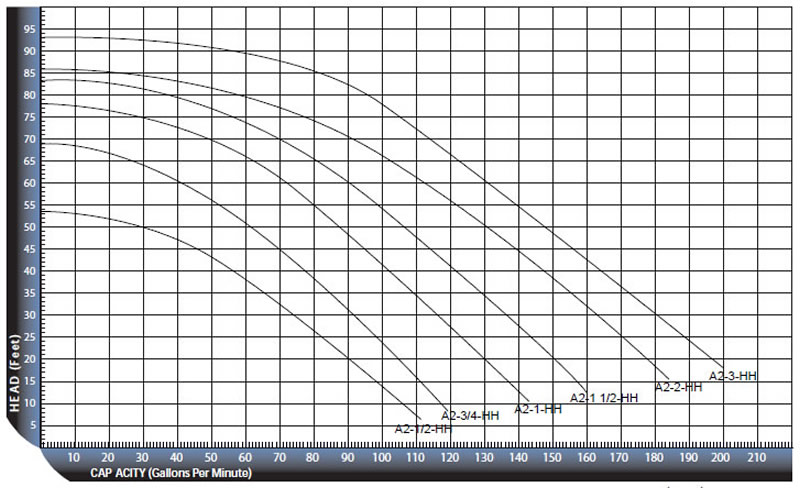

High Head
|
|---|
